100 SERlES Outward Opening System

Description

The 100 SERIES Outward Opening System from ZCSUNG System Doors and Windows represents a leap forward in modern door and window design, blending minimalist aesthetics with enhanced functionality to suit contemporary living and commercial spaces. Every element is refined to deliver superior performance, safety, and visual appeal.

At the heart of its construction is the standard 5+20Ar+5 insulated tempered glass, filled with argon gas and subjected to homogenization treatment. This configuration ensures exceptional thermal insulation and soundproofing, maintaining a comfortable indoor climate year-round while reducing external noise. The argon gas filling boosts thermal efficiency, and homogenization treatment minimizes the risk of spontaneous breakage, adding a layer of safety. The glass uses Xinyi original sheets (VP grade), ensuring unparalleled clarity for unobstructed views, framed by black one-piece bent aluminum strips that reinforce structural integrity and lend a sleek, modern finish.

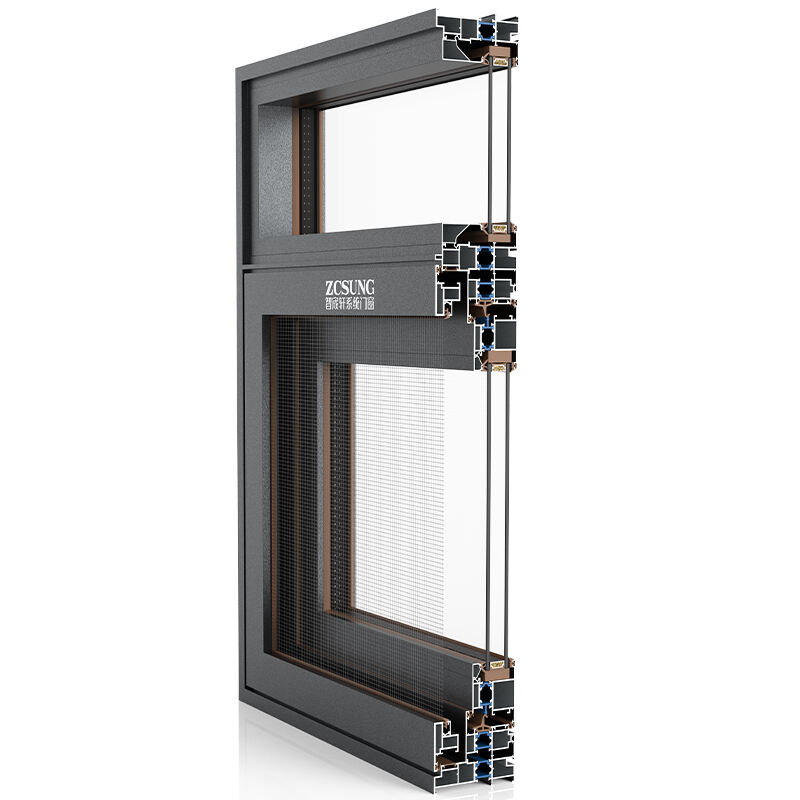

A defining feature is the ultra-narrow mullion paired with three-dimensional lines, creating a  (simple and elegant) look. This design maximizes the glass area, enhancing natural light intake and expanding the viewing field, while the  add depth and sophistication, complementing diverse architectural styles. The frame and sash are flush both inside and outside, ensuring a seamless, streamlined appearance, while the screen sash features R7 rounded corners. These rounded edges not only elevate aesthetic appeal but also enhance safety by reducing the risk of accidental bumps, making it ideal for families with children.

Sealing performance is exceptional, with three seals including EPDM rubber strips and integrally welded isobaric rubber strips. This multi-layered system effectively blocks dust, rain, and wind, maintaining a clean and comfortable indoor environment. The EPDM strips offer long-lasting durability and resistance to aging, while the welded isobaric strips ensure consistent pressure, boosting airtightness for long-term performance.

Energy efficiency is optimized through PA66GF25 thermal insulation strips and a vertical isotherm design. The insulation strips minimize heat transfer, reducing reliance on heating and cooling systems to lower energy consumption. The vertical isotherm design ensures uniform temperature distribution, promoting an eco-friendly and energy-efficient space.

In terms of operation, the system offers versatility with standard outward opening functionality and optional modes: top-hung ventilation or outward opening + top-hung combination. This flexibility caters to diverse ventilation needs—full opening for maximum airflow, top-hung mode for gentle, secure ventilation, or a combination of both. For added convenience, magnetic control shutters or electric shutters are available as options, allowing easy adjustment of light and privacy.

The integrated window-screen design enhances practicality, with options of diamond mesh, high-definition mesh, or high-transparency mesh. These screens provide multiple advanced functions: effectively preventing mosquitoes, blocking dust, and offering exceptional durability for long-term use, ensuring year-round comfort and protection.

In conclusion, the ZCSUNG 100 SERIES Outward Opening System is a perfect fusion of style, safety, and functionality. Its ultra-narrow design, superior glass performance, advanced sealing, flexible operation, and integrated screen make it an exceptional choice for those seeking to elevate their space with a system that balances aesthetics, efficiency, and practicality. It exemplifies ZCSUNG’s commitment to innovation and excellence in door and window systems.
