101 SERlES Inward Opening System

Description

The 101 SERIES Inward Opening System from ZCSUNG System Doors and Windows is a masterpiece of modern design and engineering, combining stunning aesthetics with powerful functionality to enhance any living or commercial space. Every component is carefully designed to provide an outstanding user experience, from its attractive details to its high-performance features.

The system comes standard with 5+20Ar+5 insulated tempered glass, which is filled with argon gas and undergoes homogenization treatment. This ensures excellent thermal insulation, soundproofing, and safety. The argon gas filling effectively resists heat transfer, keeping the indoor temperature stable throughout the year, while the homogenization treatment greatly reduces the risk of spontaneous breakage, adding a reliable layer of protection. The glass uses Xinyi original sheets (VP grade), ensuring unparalleled clarity for unobstructed views of the outside. It is framed with black one-piece bent aluminum strips, which not only enhance the system's visual appeal but also strengthen the structural integrity of the glass unit.

A unique design feature is the fixed glass beveled large pressing line design, which presents a geometric beauty. This special detail adds depth and sophistication to the overall look, making the 101 SERIES a prominent feature in any architectural environment. It perfectly combines form and function, with every line and angle contributing to the system's aesthetic charm.

The frame and sash are flush both inside and outside, creating a sleek and seamless appearance that complements any interior or exterior style. Adding to this refined look is the glass sash with seamless welding and an R7 rounded corner design. The seamless welding ensures a smooth and uninterrupted surface, while the rounded corners not only enhance the visual appeal but also significantly improve safety. These rounded edges minimize the risk of accidental bumps and injuries, making the system an ideal choice for families with children and pets—proving that beauty and safety can go hand in hand.

In terms of sealing performance, the 101 SERIES is equipped with three seals, including EPDM rubber strips and integrally welded isobaric rubber strips. These components work together to form an airtight barrier, effectively preventing dust, rain, and wind from entering the indoor environment. The EPDM rubber strips are known for their durability and resistance to aging, ensuring long-term sealing effectiveness, while the integrally welded isobaric rubber strips maintain consistent pressure, further enhancing the system's ability to keep the interior clean and comfortable.

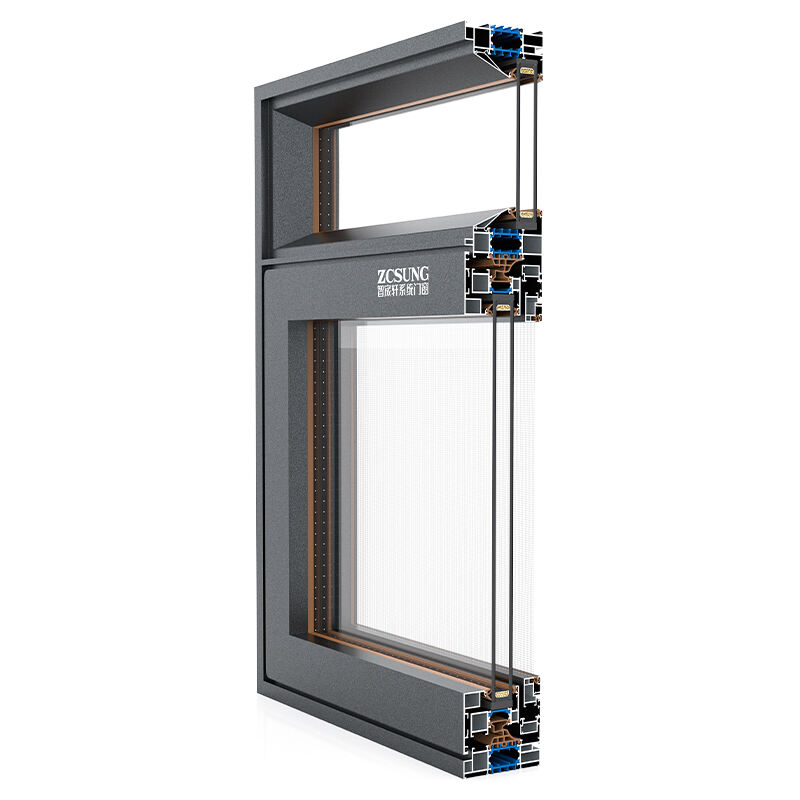

Energy efficiency is enhanced by the 41mm extra-wide thermal insulation strips and a vertical isotherm design. The ultra-wide insulation strips minimize heat transfer, reducing the need for excessive heating or cooling and thus lowering energy consumption. The vertical isotherm design ensures uniform temperature distribution across the system, contributing to a more energy-efficient and eco-friendly living space.

The glass sash can be opened inward and tilted, and it can be optionally equipped with magnetic control shutters or electric shutters. This design provides multiple ventilation options: fully opening the sash for maximum airflow or tilting it slightly for gentle and controlled ventilation without compromising security. The optional shutters allow for easy adjustment of light intake and privacy as needed.

The screen sash opens inward and can be disassembled without tools, making cleaning and maintenance simple. There are options for the screen, including diamond mesh, high-definition mesh, and high-transparency mesh, allowing users to choose the one that best suits their needs. These screens effectively prevent mosquitoes, keep dust out, and are highly durable, ensuring long-lasting performance even with frequent use.

In conclusion, the ZCSUNG 101 SERIES Inward Opening System is a perfect combination of style, functionality, safety, and energy efficiency. Its unique fixed glass design, seamless aesthetics, advanced sealing, and user-friendly features make it an excellent choice for those looking to enhance their spaces with a system that combines aesthetic elegance and practical performance. It is a testament to ZCSUNG's commitment to innovation and excellence in door and window systems.
