| Place of Origin: | China |
| Brand Name: | ZCSUNG DOOR&WINDOW SYSTEM |
| Model Number: | 110 SERIES |
Description

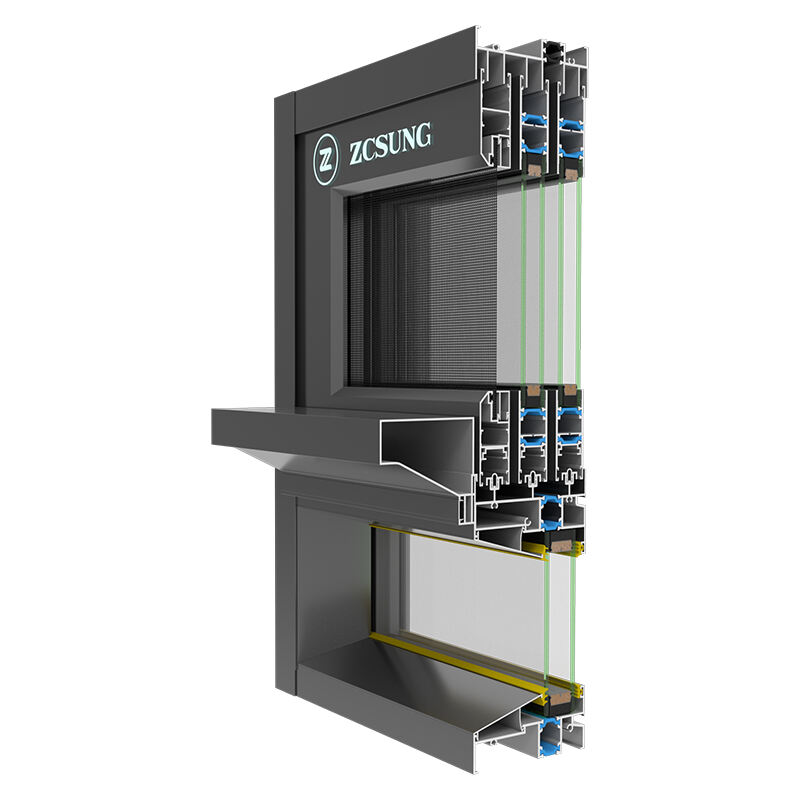

The 110 SERIES Sliding System from ZCSUNG System Doors and Windows is a perfect blend of practicality and elegance, designed to enhance the functionality and aesthetics of any space. With its thoughtful design and advanced features, it offers a seamless sliding experience while ensuring optimal performance.

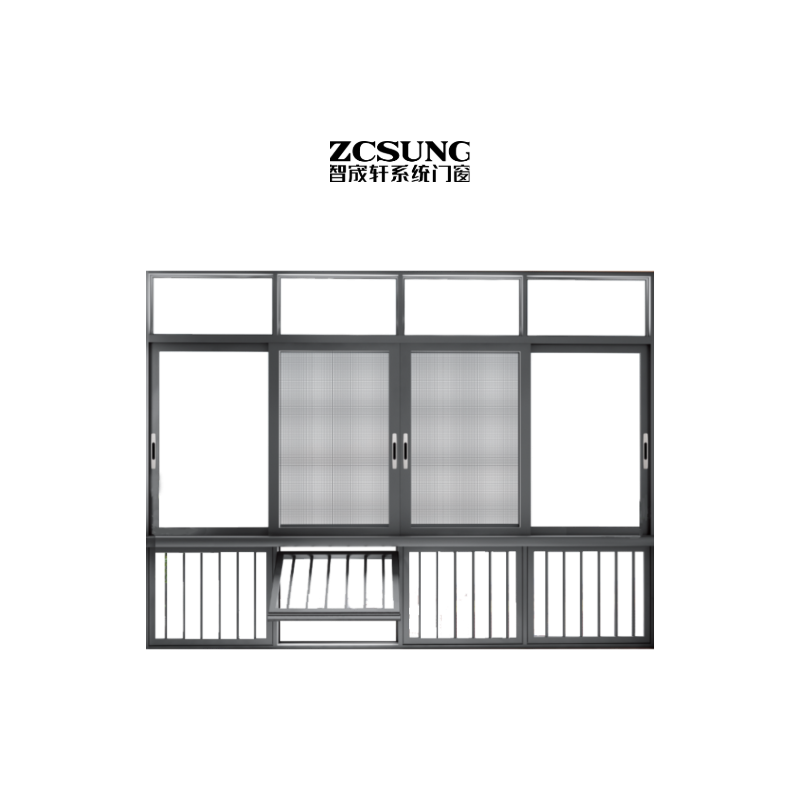

This sliding system provides flexible options to meet different needs with two-track and three-track configurations. The two-track version comes without a screen, ideal for spaces where unobstructed sliding is a priority. The three-track version, on the other hand, includes a screen, with diamond mesh and high-definition mesh available as choices. These screens effectively keep mosquitoes at bay, block dust, and are highly durable, ensuring long-term use.
Durability and smooth operation are key highlights of the 110 SERIES Sliding System. It is equipped with PA66GF25 thermal insulation strips that contribute to excellent energy efficiency, reducing heat transfer and helping maintain a comfortable indoor temperature. The stainless steel silent track ensures quiet and smooth sliding, minimizing noise during operation. Additionally, the upper rail anti-sway wheels play a crucial role in enhancing stability, preventing the sash from shaking and reducing the risk of falling off, thus ensuring safe and reliable use.
When it comes to glass configuration, the system offers high-quality options. The sash glass is 5+12Ar+5 insulated tempered glass, filled with argon gas and subjected to homogenization treatment. This ensures good thermal insulation and soundproofing, creating a peaceful indoor environment. The fixed glass adopts 5+20Ar+5 insulated tempered glass, which further enhances insulation performance. Both types of glass use Xinyi original sheets (VP grade), guaranteeing high clarity and strength. They are framed with black one-piece bent aluminum strips, which not only add a sleek touch to the design but also reinforce the structural integrity of the glass units.
The fixed glass large beveled pressing line design is a standout aesthetic feature. It presents a striking geometric beauty, adding a sense of sophistication to the overall look. This design not only enhances the visual appeal but also contributes to better safety, as the beveled edges reduce the risk of accidental injuries.
In conclusion, the ZCSUNG 110 SERIES Sliding System is a reliable and stylish choice for those seeking a high-performance sliding solution. Its flexible track configurations, durable screens, smooth sliding mechanism, excellent glass performance, and attractive design make it suitable for various residential and commercial applications, bringing both convenience and beauty to any space.
| Wind pressure resistance | 9级P3=5.0KPa GB/T7106-2019 |
| water-tightness, water proofness, water tightness | 3级△P≥500Pa GB/T 7106-2019 |
| gas tightness, airtightness | 6级q1≤1.0m/m·h GB/T7106-2019 |
| Sound insulation | 32db GB/T 8485-2008 |
Specifications
| Frame Thickness/Profile Wall Thickness: | 80mm (two rails) 110mm (three rails)/ 1.8 (mm), 6063-T5 high precision grade |
| Connection process: | One-piece angle code group corner glue process |
| Hardware standard | ZCSUNG customized sliding hardware system (automatic lock) |
| Function optional | Indoor handrail/indoor clothes rack |
| Baffle limit dimensions： | wide 450-1300mm，high600-1500mm |
| Glass process | Fan glass glue/solid glass card strip |
