| Place of Origin: | China |
| Brand Name: | ZCSUNG DOOR&WINDOW SYSTEM |
| Model Number: | 75 SERlES |

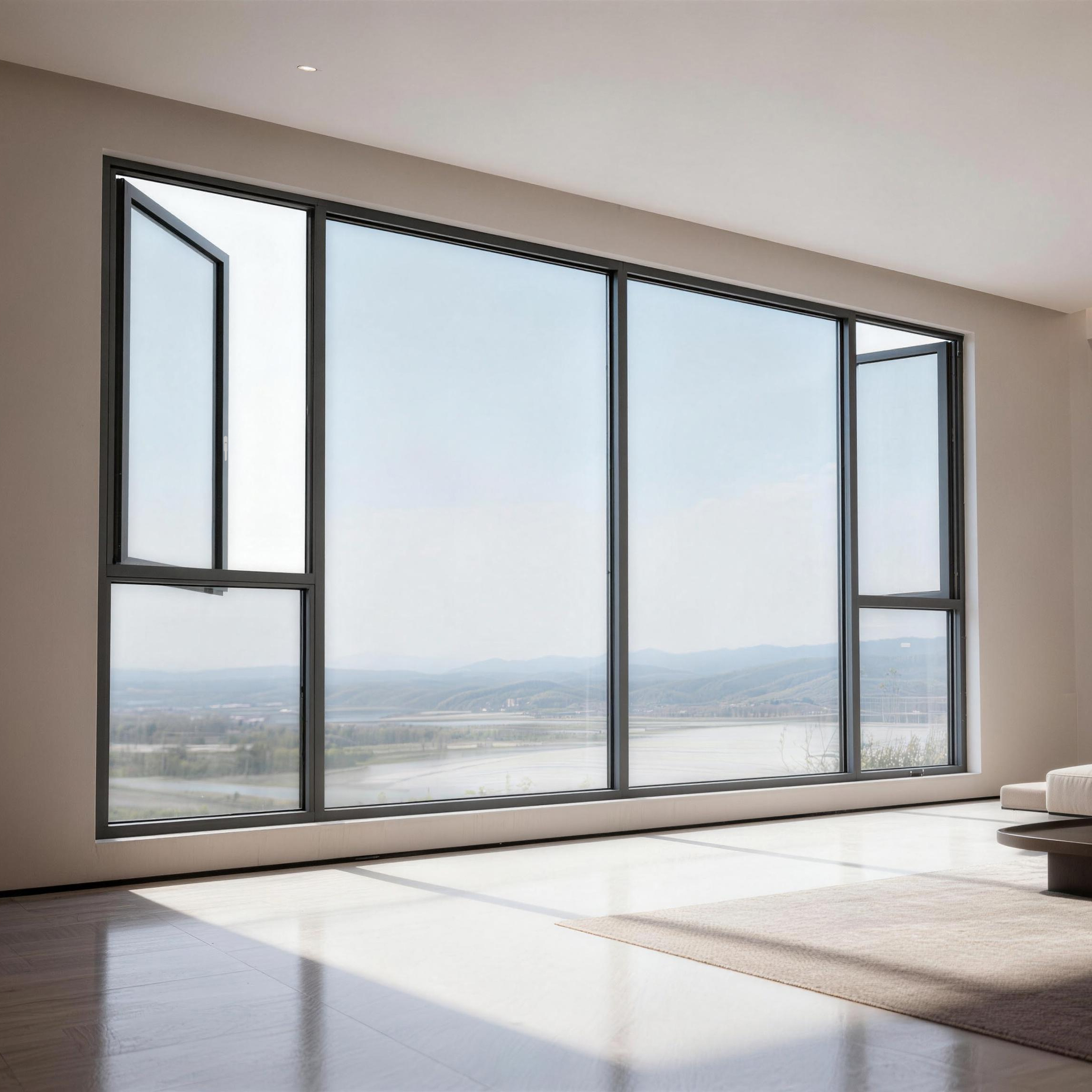

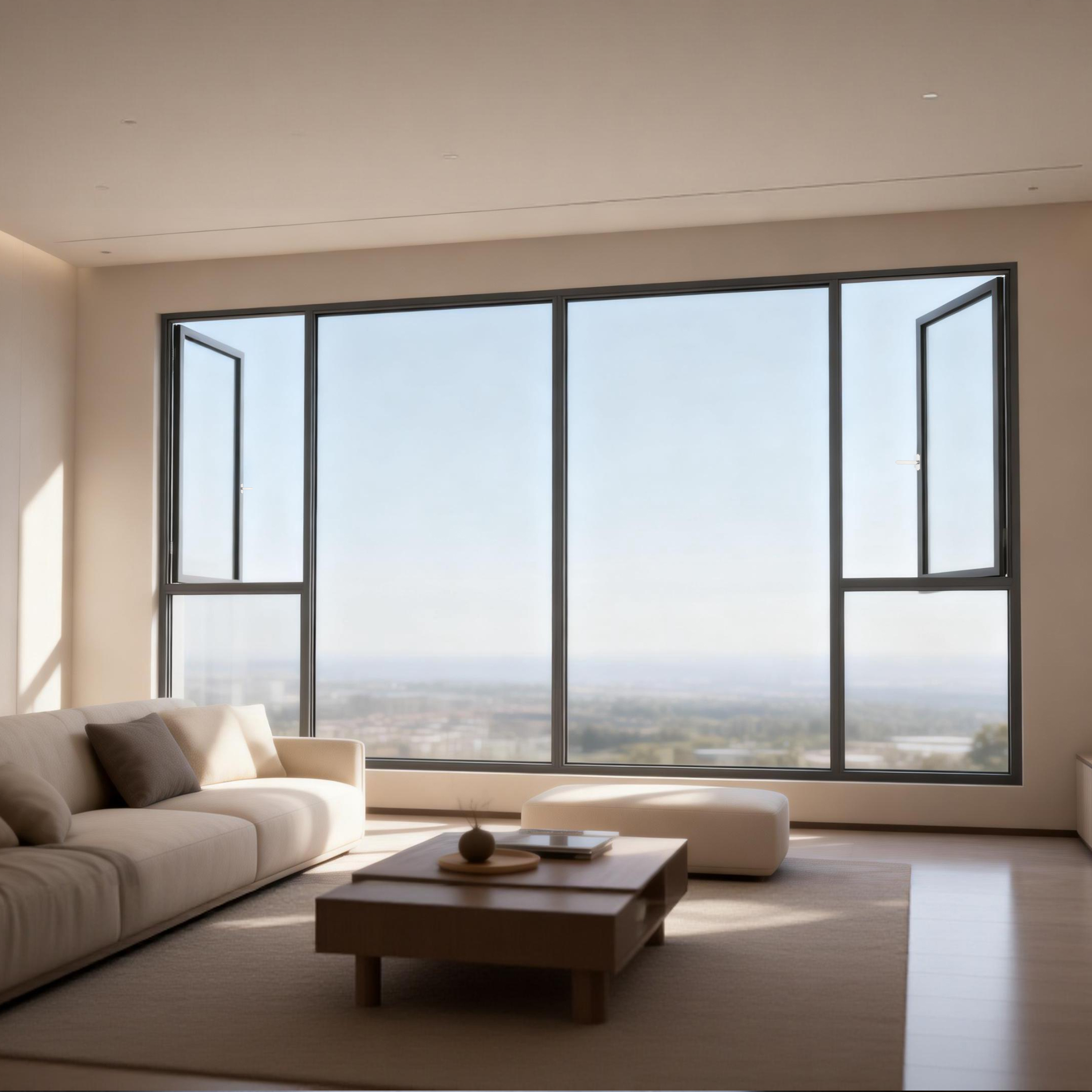

ZCSUNG 75 SERIES Outward Opening System
.
The 75 SERIES Outward Opening System by ZCSUNG System Doors and Windows seamlessly combines stylish design, practical functionality, and long-lasting durability. Tailored to cater to the requirements of contemporary architecture, it stands out with its outstanding performance and sophisticated appearance. Every detail is meticulously crafted to provide an exceptional user experience, making it an excellent option for both residential and commercial applications.
.
At the heart of its design lies the standard 5+18Ar+5 insulated tempered glass, which is filled with argon gas and undergoes homogenization processing. This glass setup delivers remarkable thermal insulation and sound insulation capabilities, keeping the indoor temperature comfortable throughout the year while effectively reducing external noise disturbance. The argon gas filling boosts the glass's thermal insulation efficiency, and the homogenization treatment greatly lowers the possibility of spontaneous breakage, enhancing safety and dependability. Adopting Xinyi original glass sheets (VP grade), the glass ensures exceptional transparency for unobstructed viewing. It is framed with black one-piece bent aluminum strips, which not only strengthen the structural stability but also add a touch of modern sophistication.
.
The system features a slim-frame design combined with a closed square pressing line, presenting a minimalist and elegant look. This design not only maximizes the glass area to increase natural light penetration but also adds a sense of geometric neatness, complementing a variety of interior and exterior decoration styles. Both the frame and sash are flush inside and out, creating a seamless and smooth appearance, while the glass sash is designed with R6 rounded corners. These rounded edges not only improve the system's visual appeal but also enhance safety by reducing the risk of accidental collisions and injuries, making it a perfect choice for families with kids.
.
Sealing performance is one of the key advantages of the 75 SERIES, equipped with three layers of seals, including EPDM rubber strips and integrally welded isobaric rubber strips. This multi-layer sealing structure effectively prevents dust, rain, and wind from entering the indoor space, ensuring a clean and cozy living environment. The EPDM rubber strips are highly durable and resistant to aging, ensuring long-term sealing performance, while the integrally welded isobaric rubber strips maintain consistent pressure to further improve airtightness.
.
Energy efficiency is optimized through the use of PA66GF25 thermal insulation strips and a vertical isotherm design. The thermal insulation strips reduce heat transfer between the interior and exterior, decreasing the dependence on heating and cooling equipment and lowering energy consumption. The vertical isotherm design ensures uniform temperature distribution across the entire system, contributing to a more energy-saving and environmentally friendly space.
.

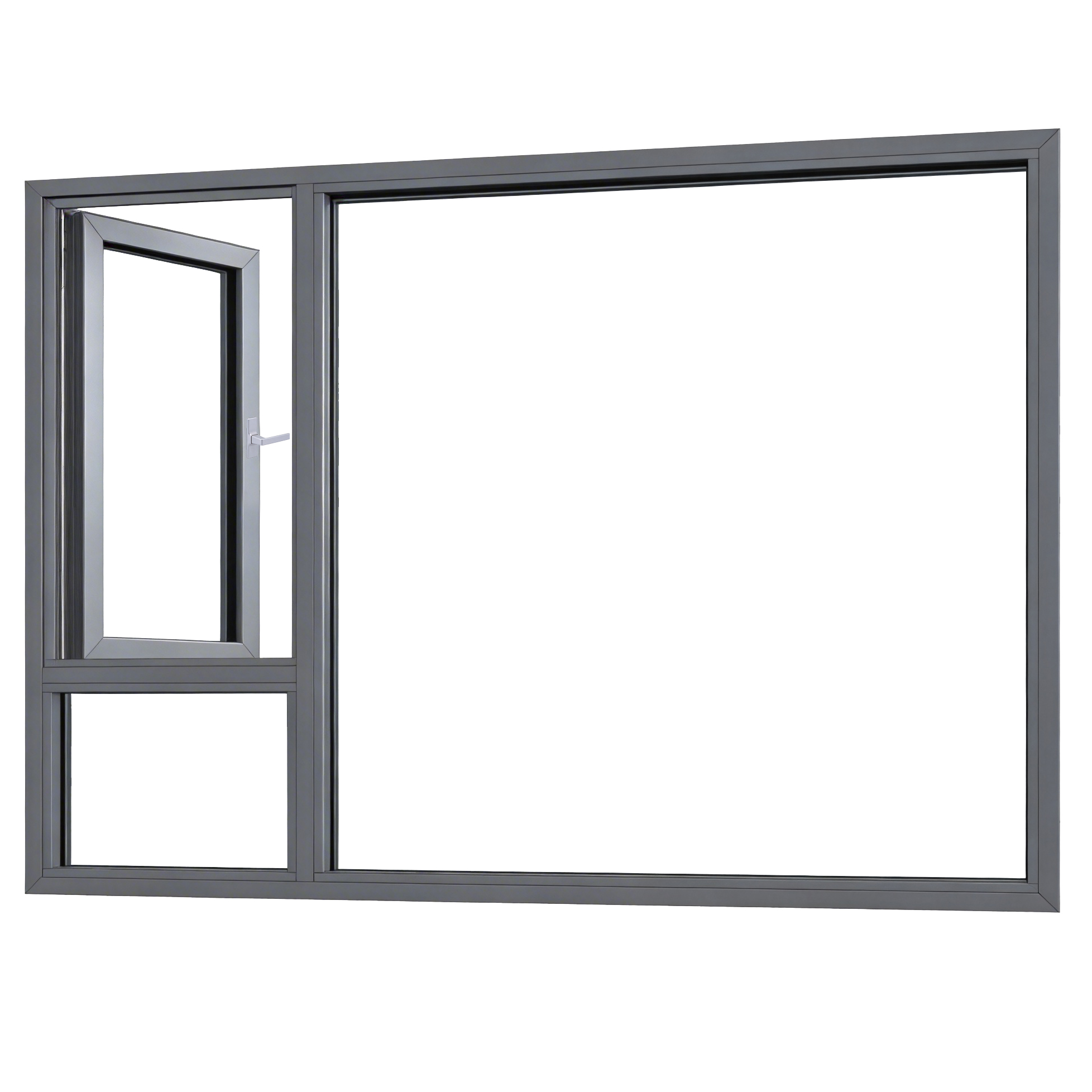

In terms of operation, the 75 SERIES offers flexible options: it comes standard with outward opening functionality and can be upgraded to outward opening with top-hung ventilation. This versatility meets different ventilation needs—fully opening the sash for maximum air circulation or using the top-hung mode for gentle, controlled ventilation while ensuring security. For added convenience, the system can be optionally fitted with magnetic control shutters or electric shutters, allowing easy adjustment of light intake and privacy according to specific needs.
.
In summary, the ZCSUNG 75 SERIES Outward Opening System is an ideal integration of aesthetic charm, safety, and performance. Its advanced glass configuration, sleek design, superior sealing performance, and flexible operation make it a top choice for those looking to enhance their spaces with a system that unites style, functionality, and energy efficiency. It serves as a reflection of ZCSUNG's dedication to innovation and excellence in door and window systems.
.
| Wind pressure resistance | 9级P3=5.0KPa GB/T7106-2019 |
| water-tightness, water proofness, water tightness | 6级△P≥500Pa GB/T 7106-2019 |
| gas tightness, airtightness | 8级q1≤1.0m/m·h GB/T7106-2019 |
| Sound insulation | 38db GB/T 8485-2008 |
| Insulation | 1.4-1.8W/m²·K GB/T8484-2020 |
| Corrosion resistance>240 hours of salt spray test | |
.
Specifications
| Frame Thickness/Profile Wall Thickness: | 75/1.8-2.0 (mm), 6063-T5 high precision grade |
| Connection process: | One-piece angle code group corner glue process |
| Hardware standard | CMECH outward opening hardware system screen window |
| Window screen optional | Hide the folding screen |
| Baffle limit dimensions： | Wide≤750mm，high≤160000mm |
