Factory 130 Series Aluminum Sliding Door Passed US & Australia Standards, Stable Load Bearing #HeavyDutySlidingDoor
- Overview
- Recommended Products
| Place of Origin: | China |
| Brand Name: | ZCSUNG DOOR&WINDOW SYSTEM |
| Model Number: | 130 SERIES |

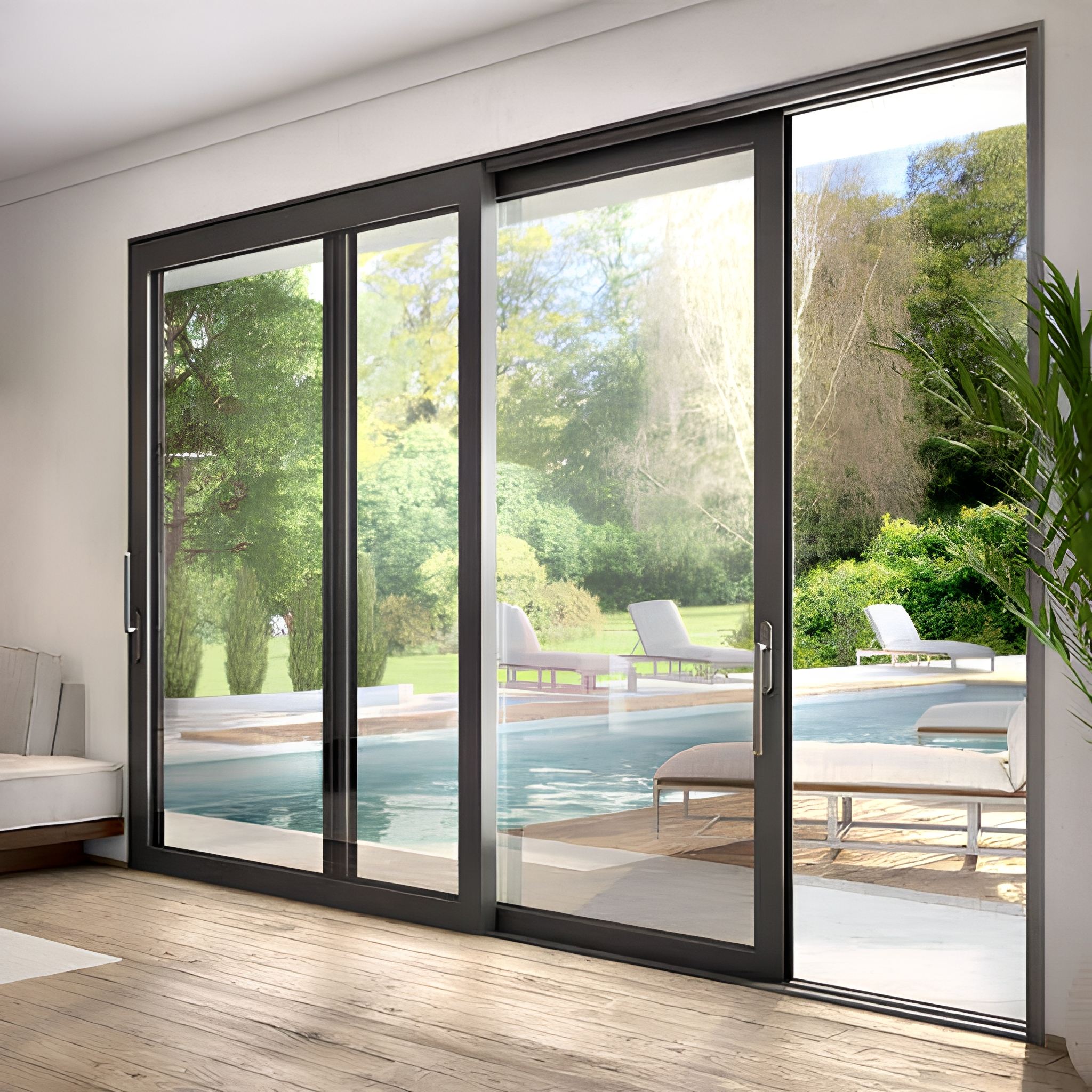

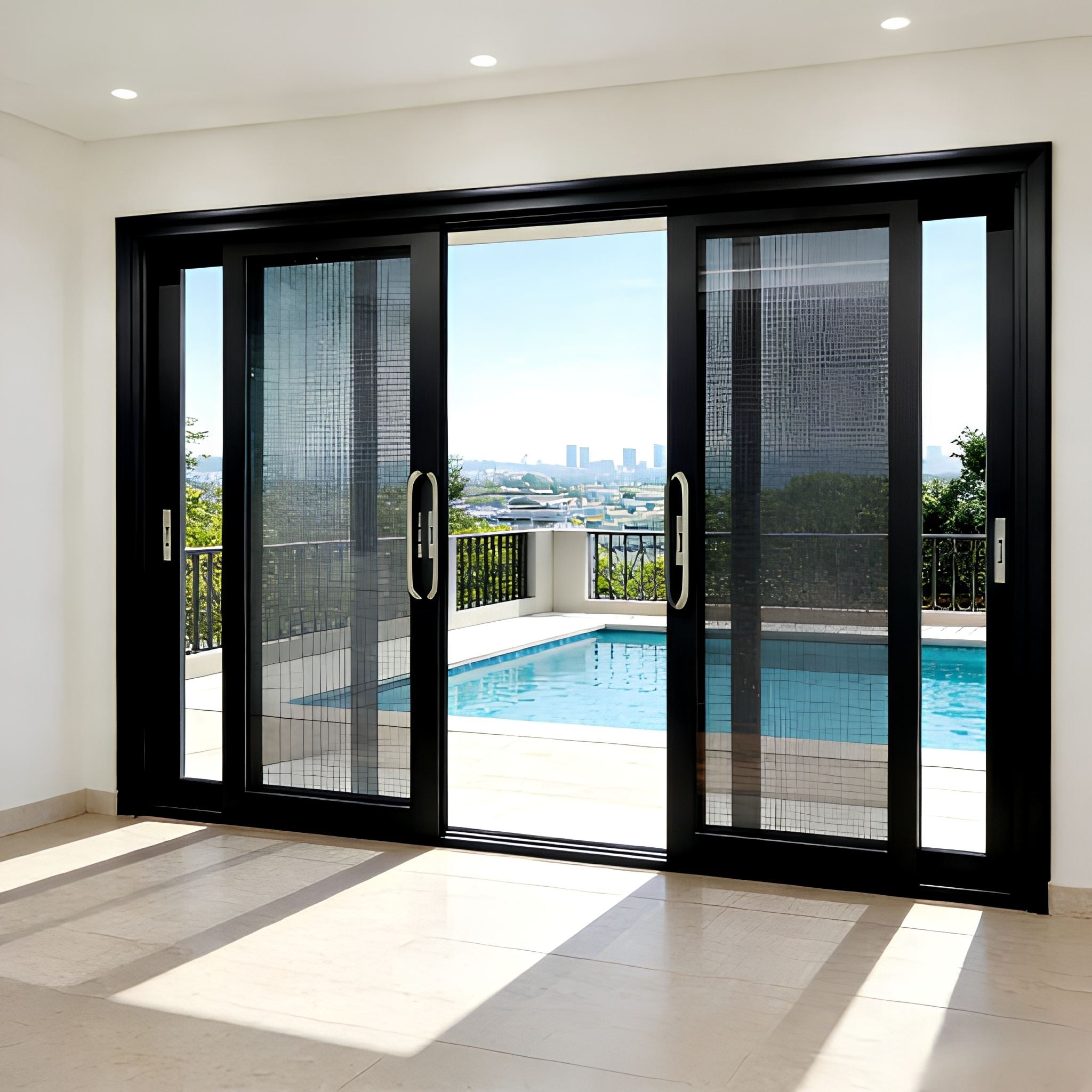

The ZCSUNG 130 HEAVY-DUTY Aluminum Sliding Door
.
The 130 HEAVY-DUTY Aluminum Sliding Door from ZCSUNG System Doors and Windows is a masterpiece of architectural engineering designed to redefine spatial freedom. By harmonizing ultra-robust structural integrity with a minimalist aesthetic, this heavy-duty series creates an unparalleled sense of seamless connection between your interior sanctuary and the outdoor landscape. Whether you are overlooking a lush garden or a sprawling city skyline, the 130 HEAVY-DUTY SERIES turns solid walls into panoramic visual gateways, flooding living spaces with abundant natural light and fresh circulating air. Crucially, this sliding door has obtained official US NFRC certification and Australian AS2047 hurricane-resistant certification, fully complying with stringent North American and Australian local building codes for coastal and storm-prone regions.
.
Exceptional Durability and Precision Motion
.
Durability and ultra-smooth operation are the core design pillars of the 130 HEAVY-DUTY SERIES. The door is fitted with heavy-load silent bearing rollers and thickened premium stainless steel tracks, delivering featherlight gliding performance even under long-term daily frequent use. The reinforced 130mm deep frame builds an extremely stable load-bearing foundation, completely eradicating rattling, shaking and loose wobble issues that plague conventional lightweight sliding doors. This optimized mechanical structure enables large door sashes to slide nearly silently, preserving a tranquil indoor environment while guaranteeing effortless one-handed operation.
.
Advanced Security and Hermetic Sealing
.
High-level security is fully embedded into the 130 HEAVY-DUTY SERIES design. It adopts an elaborate multi-point interlocking locking system, forming a tight gap-free fit between frame and sash. This robust structure strongly blocks illegal break-in attempts, meanwhile elevating overall airtight and watertight performance significantly. Full-perimeter EPDM weather sealing strips are applied across the whole door perimeter, reliably blocking strong winds, heavy rainfall and outdoor dust from penetrating indoors, and permanently maintains a clean, comfortable indoor living environment. Backed by Australian AS2047 hurricane certification, this door can withstand powerful typhoons and gales without deformation or water leakage, ideal for coastal storm zones.
.
High-Performance Glass Configuration
.
The glass assembly of the 130 HEAVY-DUTY SERIES meets top-tier international industry benchmarks. It is factory equipped with standard 6+18Ar+6 insulated tempered glass filled with high-purity argon gas. The 18mm wide insulating cavity greatly upgrades thermal insulation and noise reduction performance, keeping interiors quiet and constant-temperature all year round. Every glass unit adopts original Xinyi VP-grade glass sheets for superior optical clarity and mechanical strength; integrated bent black aluminum spacers deliver a streamlined modern look while strengthening the structural stability of the insulated glass unit. All glass undergoes full homogenization treatment, drastically lowering spontaneous glass breakage risks and securing long-term household safety. Meanwhile, the US NFRC certified thermal performance verifies its outstanding energy-saving effect to meet North American residential energy code requirements.
.
Versatile Design and Visual Immersion
.
Flexible configurability is a standout feature of the 130 HEAVY-DUTY SERIES. It supports customized double-track or triple-track layouts to match diverse opening widths and architectural design demands. The slim frame profile cuts visual obstruction to the minimum, keeping the outdoor scenery the focal point of the view. This minimalist frame delivers a near-frameless visual effect, injecting contemporary premium styling into living rooms, patios, balconies and villa courtyards of all styles.
.
Superior Drainage and Threshold Options
.
Engineered for harsh extreme weather conditions, the 130 HEAVY-DUTY SERIES supplies two mature threshold solutions: a 20mm flat track for barrier-free accessibility and a 54mm high-low differential track for upgraded waterproofing capability. The high-low track leverages the isobaric pressure balance principle to maximize drainage efficiency. Even during sustained heavy torrential rains, rainwater is rapidly drained out of the track cavity without pooling, effectively protecting interior floors from water seepage damage — a key design validated by the AS2047 hurricane resistance certification.
.
Conclusion
.
The ZCSUNG 130 HEAVY-DUTY Aluminum Sliding Door perfectly integrates sleek aesthetics, precise mechanical craftsmanship and long-term structural durability, with authoritative US NFRC energy efficiency certification and Australian AS2047 anti-hurricane certification to serve overseas markets reliably. It is far more than a simple access partition, but a symbol of superior quality and a gateway to brighter, more open living space. For villa owners, property developers and contractors seeking stable operation, storm resistance, energy efficiency and high-end appearance in heavy-duty sliding door systems, the ZCSUNG 130 HEAVY-DUTY SERIES is the definitive ideal choice.
| Wind pressure resistance | 9级P3=5.0KPa GB/T7106-2019 |
| water-tightness, water proofness, water tightness | 5级△P≥500Pa GB/T 7106-2019 |
| gas tightness, airtightness | 7级q1≤1.0m/m·h GB/T7106-2019 |
| Sound insulation | 38db GB/T 8485-2008 |

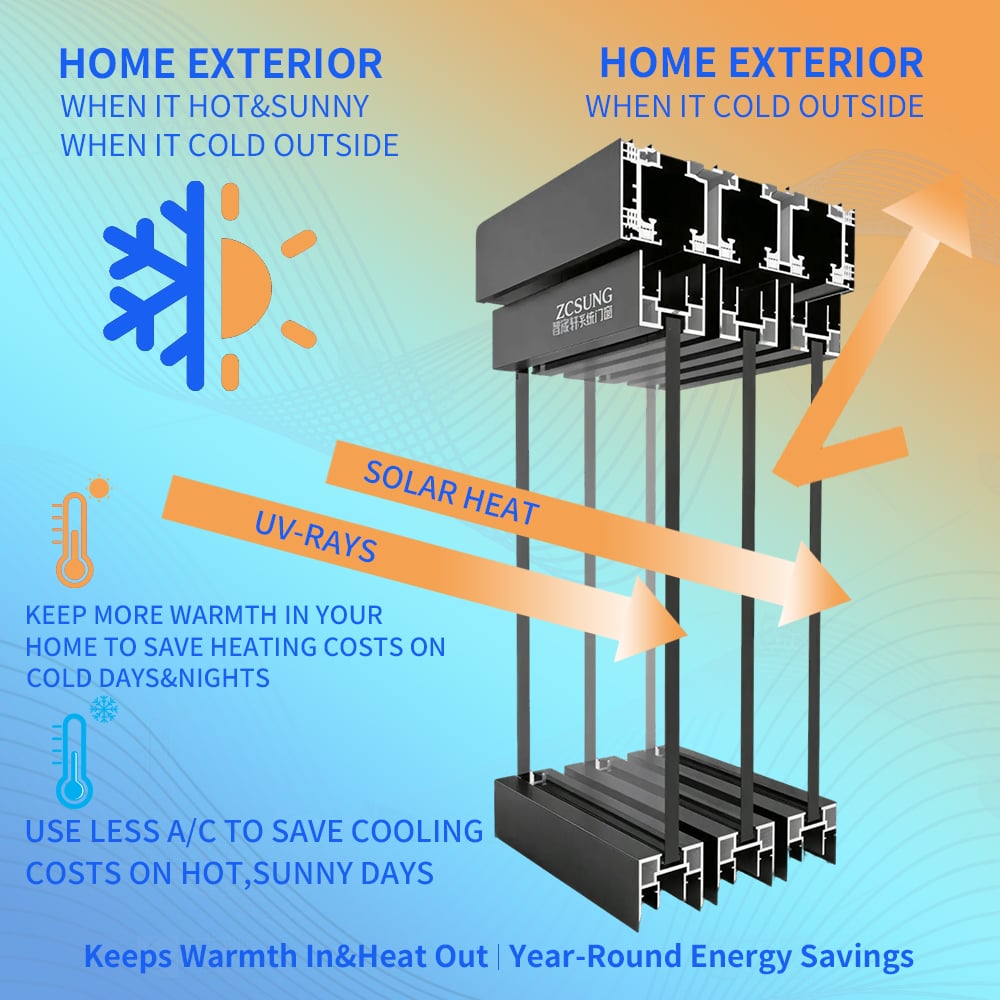

| Insulation | 1.6-2.4W/m²·K GB/T8484-2020 |
| Corrosion resistance>240 hours of salt spray test | |
Specifications
| Frame Thickness/Profile Wall Thickness: | 130 / 2.2（mm），6063-T5 high precision grade |
| Connection process: | One-piece angle code group corner glue process |
| Hardware standard | CMECH Foldable door hardware |
| Baffle limit dimensions： | WIDE: 700-950mm， high 1950-2700mm |
| Door fan / central mallet internal visibility width | 67mm / 89mm |
