Thermally Broken Aluminum Double Leaf Sliding Window Double Glazed Tempered Glass Offers Enhanced Insulation Waterproof Moisture
- Overview
- Recommended Products
| Place of Origin: | China |
| Brand Name: | ZCSUNG DOOR&WINDOW SYSTEM |
| Model Number: | Windows SERIES |
Product Description
ZCSUNG’s 160 series thermally broken six-track sliding aluminum window reshapes residential and commercial modern glazing solutions, merging streamlined minimalist styling with all-around practical performance to satisfy diverse renovation and new construction project demands.

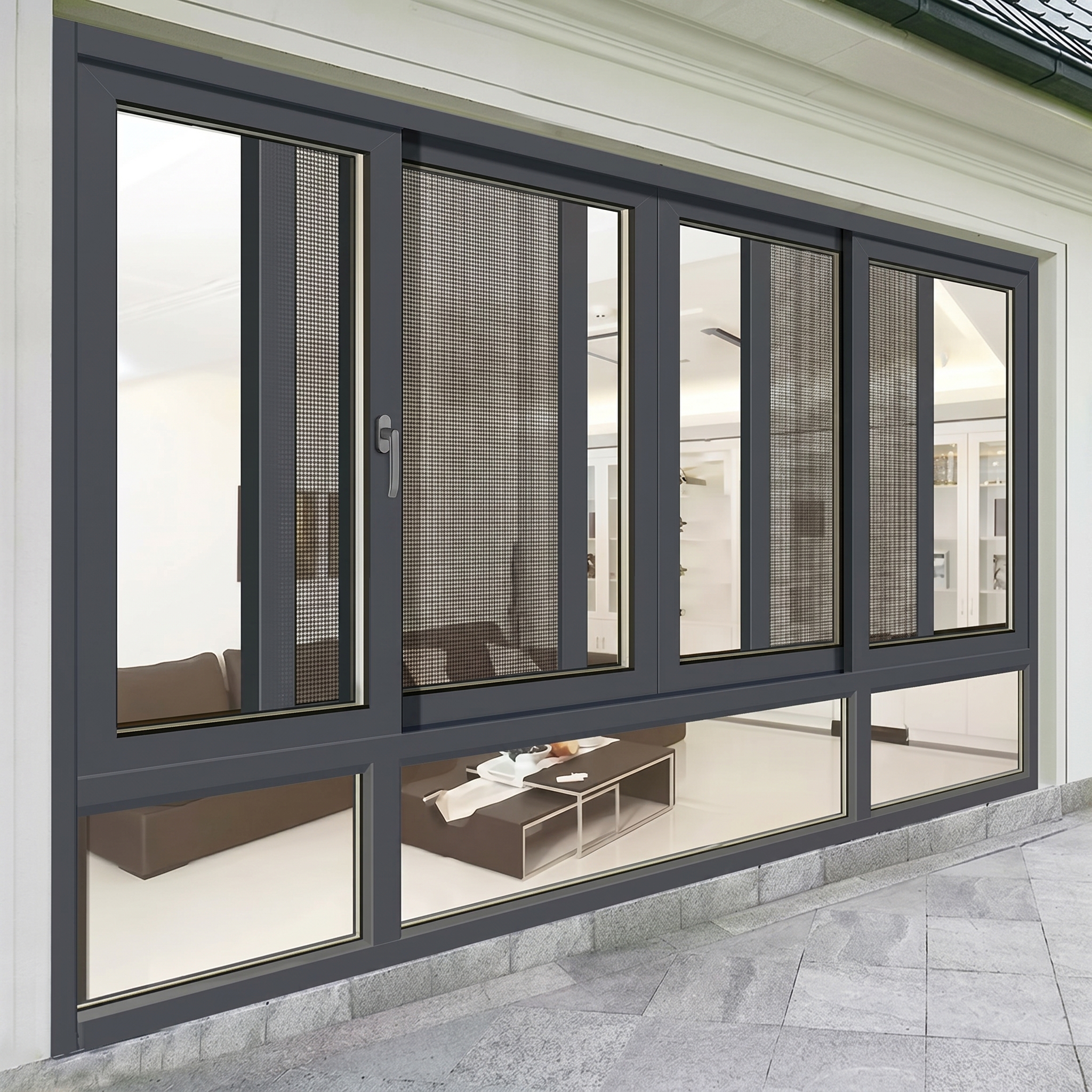

This double leaf sliding unit adopts an all-in-one built-in screen structure, with three customizable screen variants available: diamond security mesh, high-definition invisible mesh and high-light transmittance mesh. Each screen variant delivers multi-dimensional daily protection: efficient mosquito isolation, external dust filtration to keep indoor spaces tidy, and robust wear-resistant construction that maintains stable performance through years of frequent daily operation.
The core six-track load-bearing mechanism adopts dual bearing beams and multi-wheel balance sliding technology. By evenly distributing the weight of each sash onto multiple silent rollers, friction between moving components is drastically cut down. The window panels slide fluidly without shaking, stalling or jitter even under long-term repeated opening and closing, greatly extending the whole set’s service lifespan while bringing effortless daily operation.
Customized functional accessories are provided to match different household and commercial scenarios. Customers can select recessed suspended tracks to eliminate floor ridges for easy mopping, extra wide built-in interior handrails for small-item storage, and integrated indoor clothes hangers. These flexible add-ons transform ordinary sliding windows into multi-purpose household fixtures that fit various living habits.

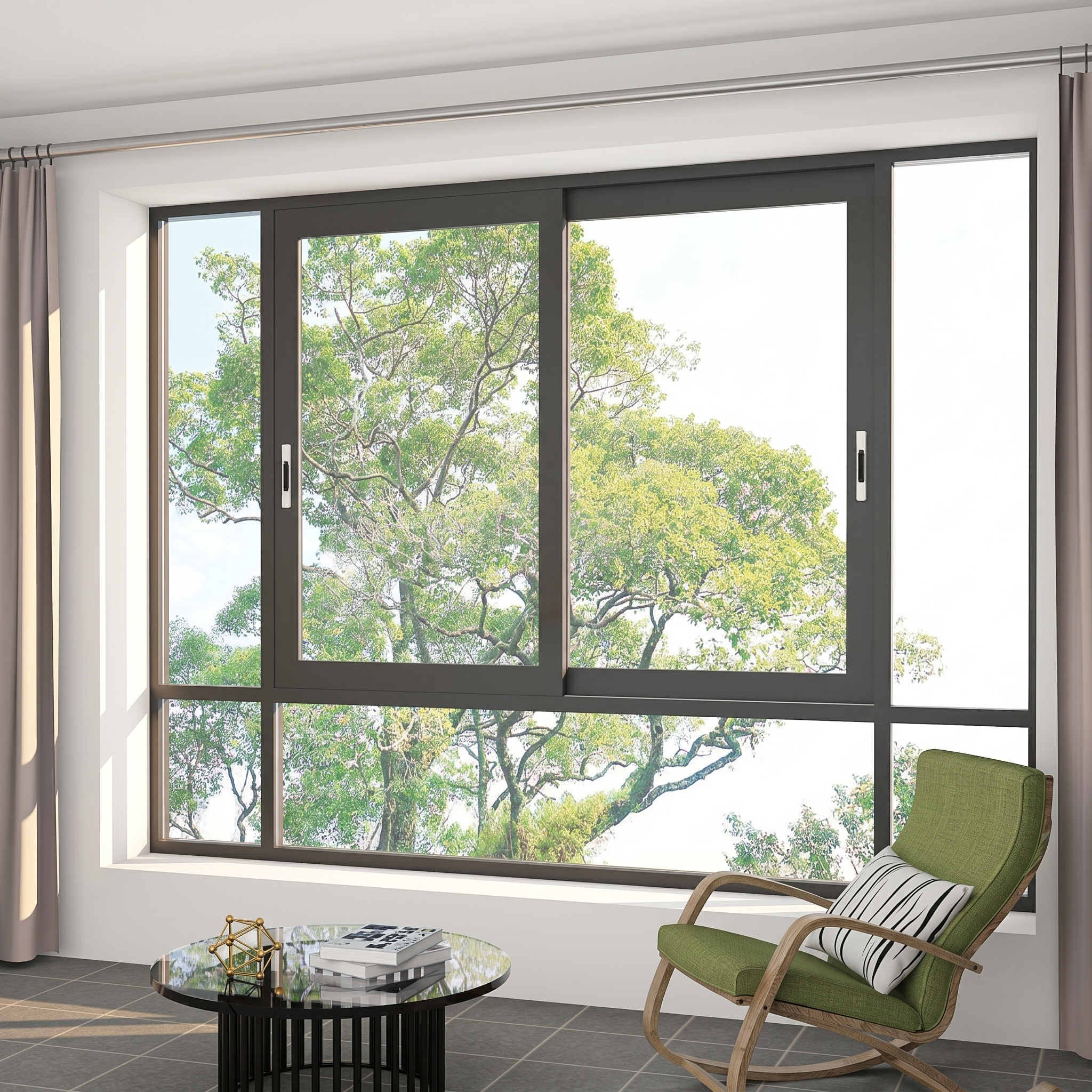

Distinctive slim frame construction distinguishes this series from conventional bulky sliding windows. Thin wall aluminum profiles expand the visible glass proportion significantly, delivering brighter interiors and uninterrupted panoramic outdoor sightlines. Paired with thin integrated edge pressure strips with neat geometric lines, the whole window carries clean minimalist aesthetics that coordinate perfectly with contemporary villa and apartment architectural styles.
The standard glazing package is engineered for thermal and acoustic comfort, featuring 5mm+20Argon spacer+5mm homogenized double tempered insulated glass. The thick 20mm argon-filled cavity strengthens heat blocking and noise reduction effects, stabilizing indoor temperatures and filtering outdoor traffic or ambient noise. Homogenization processing eliminates spontaneous glass bursting risks for long-term safety, while VP-grade Xinyi raw glass sheets ensure crystal clear vision. Integrated black curved aluminum spacer bars boost the glass unit’s structural rigidity and create a refined high-end appearance.
Overall, ZCSUNG 160 series thermally broken double leaf six-track sliding window integrates thin frame aesthetics, seamless multi-wheel sliding hardware, customizable practical attachments and premium argon-filled insulated glass. Balancing outstanding waterproof, moisture-proof, thermal insulation and sound insulation performance, this aluminum sliding window is a well-rounded premium glazing solution for modern architecture, fully reflecting ZCSUNG’s persistent focus on innovative, high-quality aluminum door and window system development.
| Wind pressure resistance | 9级P3=5.0KPa GB/T7106-2019 |
| water-tightness, water proofness, water tightness | 3级△P≥500Pa GB/T 7106-2019 |
| gas tightness, airtightness | 6级q1≤1.0m/m·h GB/T7106-2019 |
| Sound insulation | 32db GB/T 8485-2008 |
Specifications
| Frame Thickness/Profile Wall Thickness: | 160/ 2.2 (mm), 6063-T5 high precision grade |
| Connection process: | One-piece angle code group corner glue process |
| Hardware standard | ZCSUNGcustomized hardware system (side lock, automatic lock) |
| Function optional | Indoor clothes rack\indoor handrail platform\floating track |
| Baffle limit dimensions： | wide ≤2200mm，high≤2000mm |
| Window frame/sash visibility width | 40/34(mm) |
