| Place of Origin: | China |
| Brand Name: | ZCSUNG DOOR&WINDOW SYSTEM |
| Model Number: | 80 SERIES |

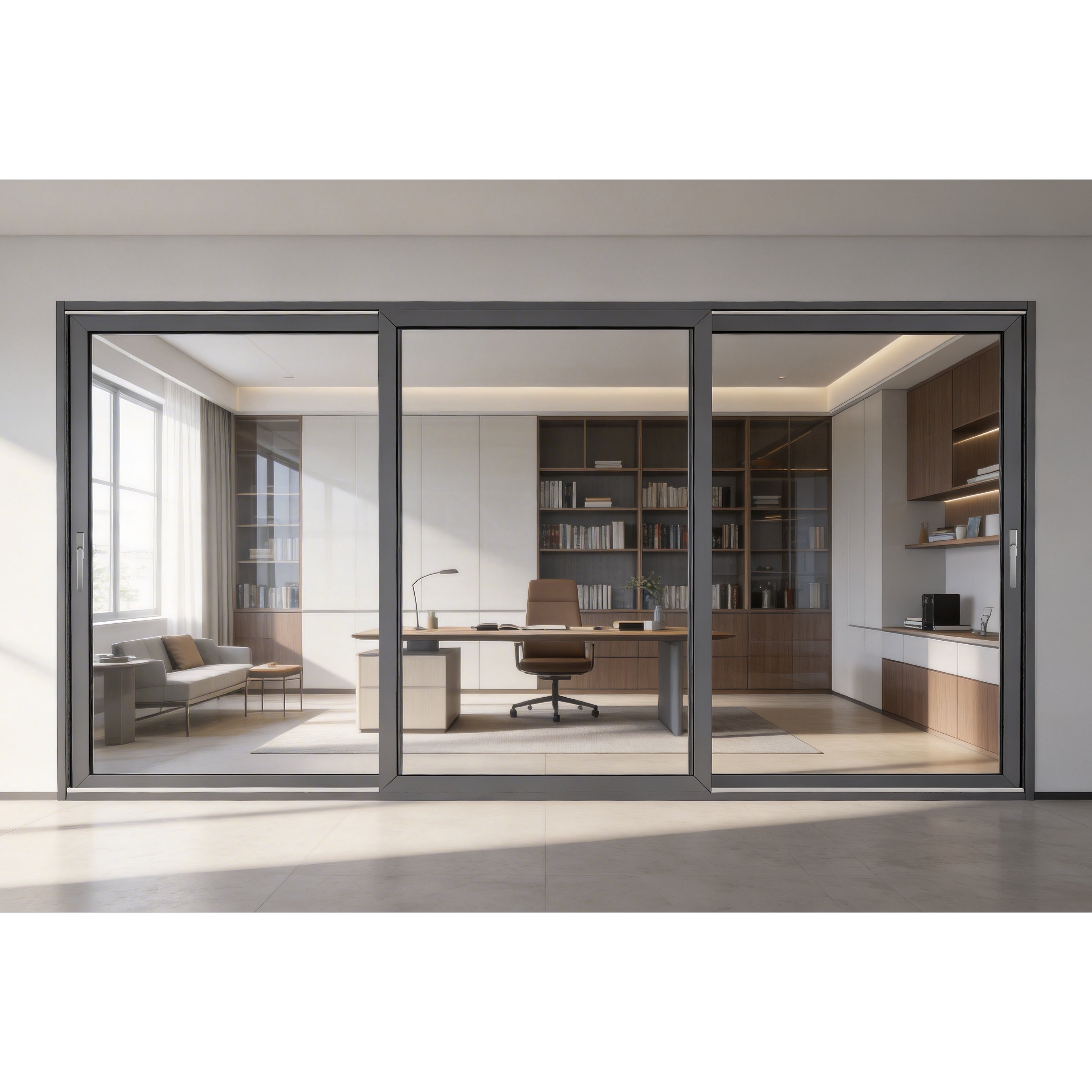

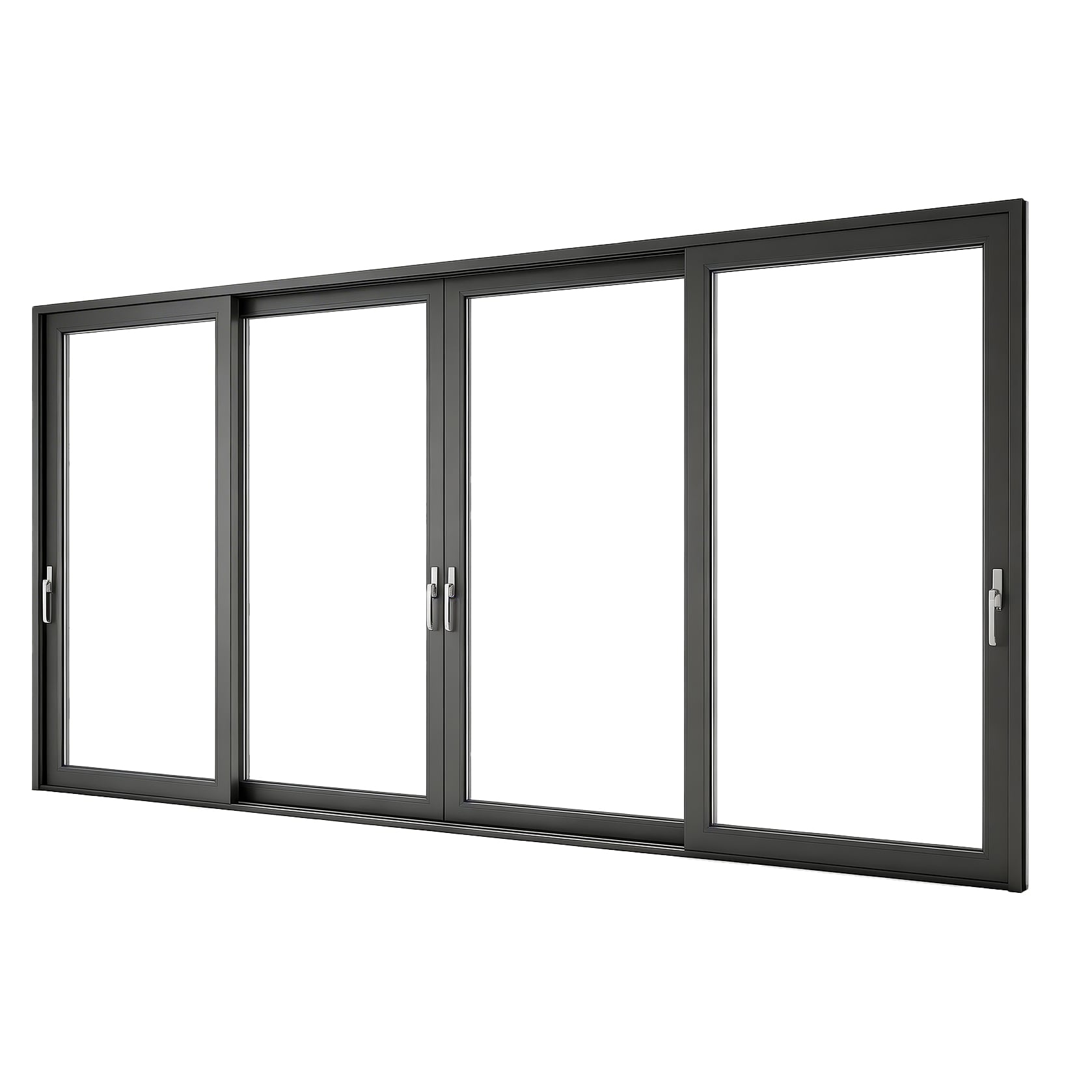

The ZCSUNG 80 SERIES Aluminum Sliding Door
.
The 80 SERIES Aluminum Sliding Door from ZCSUNG System Doors and Windows is a masterpiece of architectural engineering designed to redefine spatial freedom. By harmonizing robust structural integrity with a minimalist aesthetic, this series creates an unparalleled sense of connection between your interior sanctuary and the world outside. Whether you are overlooking a vibrant garden or a sprawling cityscape, the 80 SERIES transforms your wall into a panoramic gateway, flooding your home with natural light and fresh air.
.
Exceptional Durability and Precision Motion Durability and smoothness are the twin pillars of the 80 SERIES design. The door is equipped with high-load-bearing silent rollers and premium stainless steel tracks, ensuring a light-as-air gliding experience even with frequent daily use. The reinforced 80mm frame depth provides a rock-solid foundation, eliminating the "rattle" and "wobble" common in traditional sliding doors. This intelligent mechanical system allows the large sashes to move in near-total silence, maintaining the peaceful atmosphere of your home while providing effortless operation.
.
Advanced Security and Hermetic Sealing Security is seamlessly integrated into the 80 SERIES. It features a sophisticated multi-point locking system that creates a powerful, gap-free connection between the frame and the sash. This not only serves as a formidable deterrent against intruders but also contributes to the door’s exceptional sealing performance. To ensure comprehensive protection, the door utilizes surrounding EPDM sealing strips, which effectively block out wind, rain, and environmental dust, preserving the pristine condition of your indoor space.
.
High-Performance Glass Configuration The glass configuration of the 80 SERIES stands at the forefront of industry standards. It comes standard with 6+18Ar+6 insulated tempered glass, filled with high-purity argon gas. This 18mm air gap significantly enhances thermal efficiency and acoustic insulation, keeping your home quiet and comfortable. Every unit uses Xinyi original sheets (VP grade) for maximum clarity and strength, while the black one-piece bent aluminum strips add a modern, sleek touch that reinforces the glass unit's structural integrity. The glass is also subjected to homogenization treatment, virtually eliminating the risk of spontaneous breakage for your long-term safety.
.
Versatile Design and Visual Immersion Versatility is a hallmark of the 80 SERIES. It can be configured as a double-track or triple-track system to suit different opening sizes and architectural requirements. The narrow-frame design minimizes visual obstructions, allowing the focus to remain on the beauty beyond your window. This minimalist profile creates a "frameless" feel that adds a touch of modern sophistication to any living room, patio, or balcony.
.
Superior Drainage and Threshold Options To ensure reliability in harsh weather, the 80 SERIES offers thoughtful threshold designs, including flat rail (20mm) for barrier-free access or high-low rail (54mm) for enhanced weatherproofing. The high-low rail design utilizes the isobaric principle to optimize drainage performance. Even during intense downpours, water is efficiently channeled away from the track, preventing accumulation and protecting your interior flooring from potential water damage.
.
Conclusion The ZCSUNG 80 SERIES Aluminum Sliding Door is a perfect blend of style, mechanical precision, and lasting durability. It is more than just a gateway; it is a statement of quality and an invitation to a more open, light-filled living experience. For those who demand a reliable, smooth-operating, and aesthetically pleasing sliding system, the 80 SERIES stands as the definitive choice.
| Wind pressure resistance | 9级P3=5.0KPa GB/T7106-2019 |
| water-tightness, water proofness, water tightness | 5级△P≥500Pa GB/T 7106-2019 |
| gas tightness, airtightness | 7级q1≤1.0m/m·h GB/T7106-2019 |
| Sound insulation | 38db GB/T 8485-2008 |
| Insulation | 1.6-2.4W/m²·K GB/T8484-2020 |
| Corrosion resistance>240 hours of salt spray test | |
Specifications

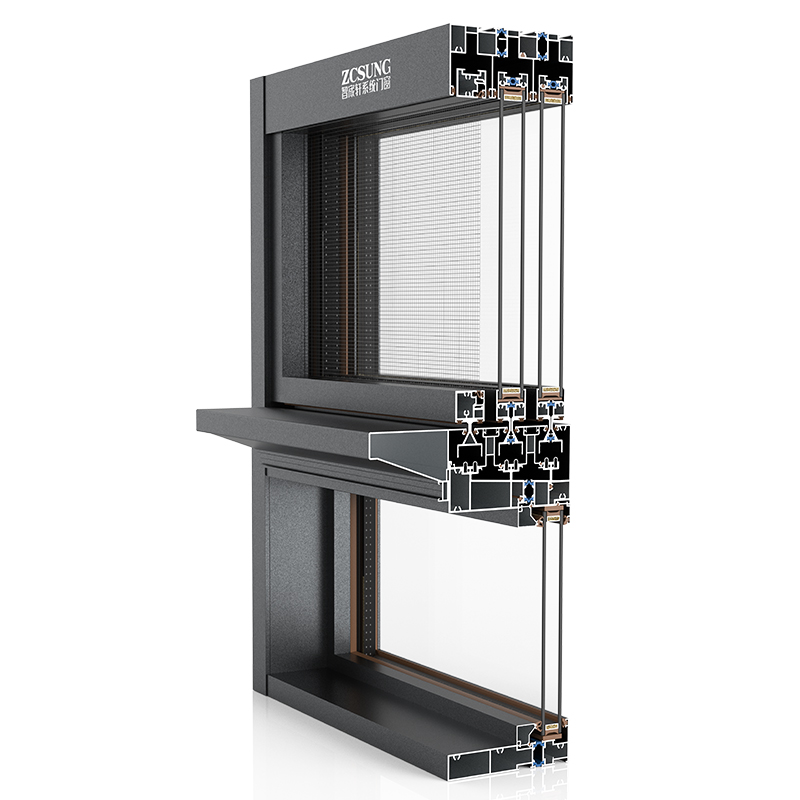

| Frame Thickness/Profile Wall Thickness: | 80 / 2.2（mm），6063-T5 high precision grade |
| Connection process: | One-piece angle code group corner glue process |
| Hardware standard | CMECH Foldable door hardware |
| Baffle limit dimensions： | WIDE: 700-950mm， high 1950-2700mm |
| Door fan / central mallet internal visibility width | 67mm / 89mm |
