| Place of Origin: | China |
| Brand Name: | ZCSUNG DOOR&WINDOW SYSTEM |
| Model Number: | 80 SERIES |
Description

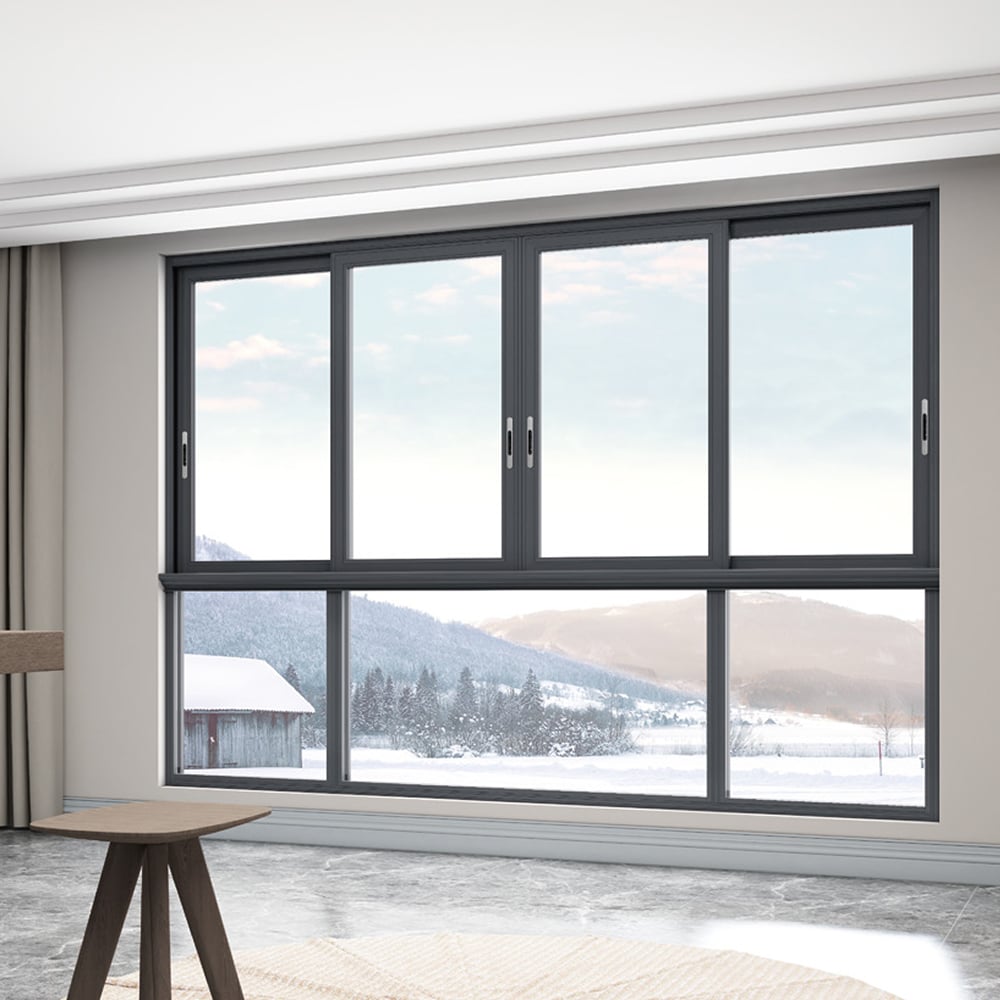

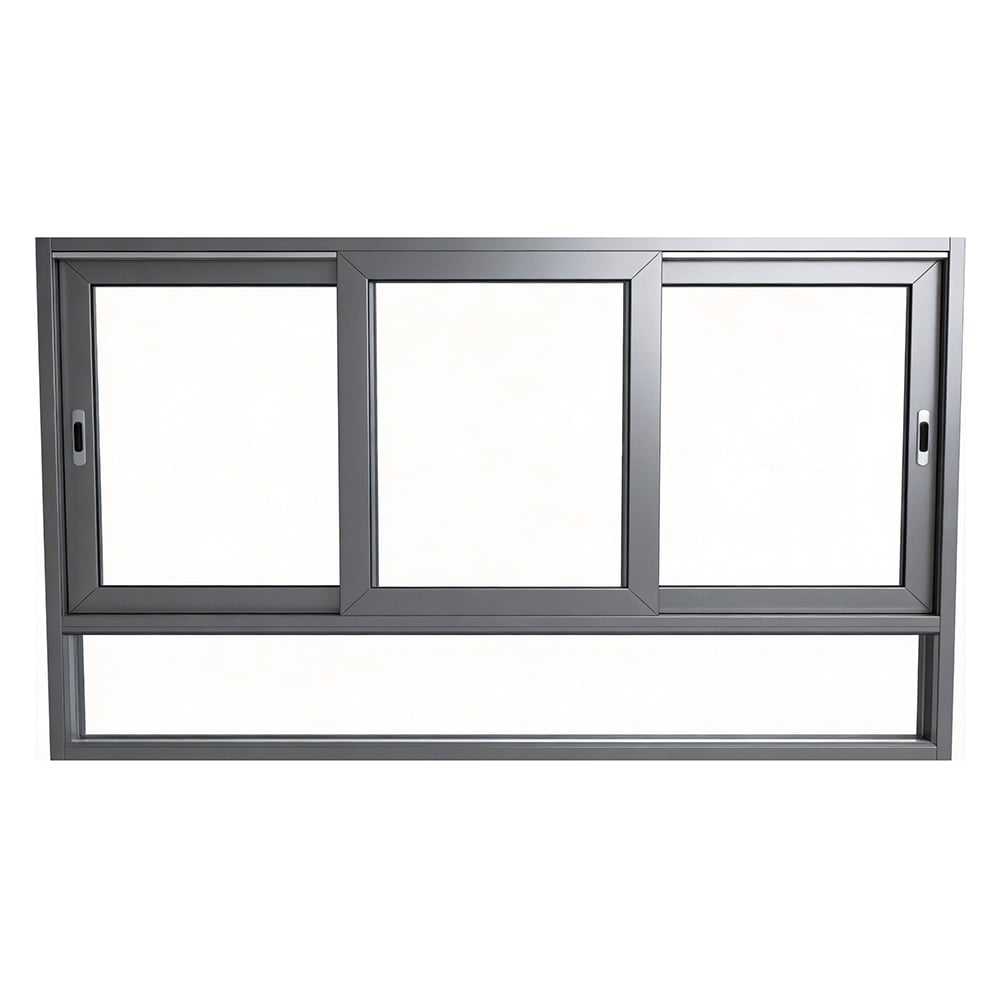

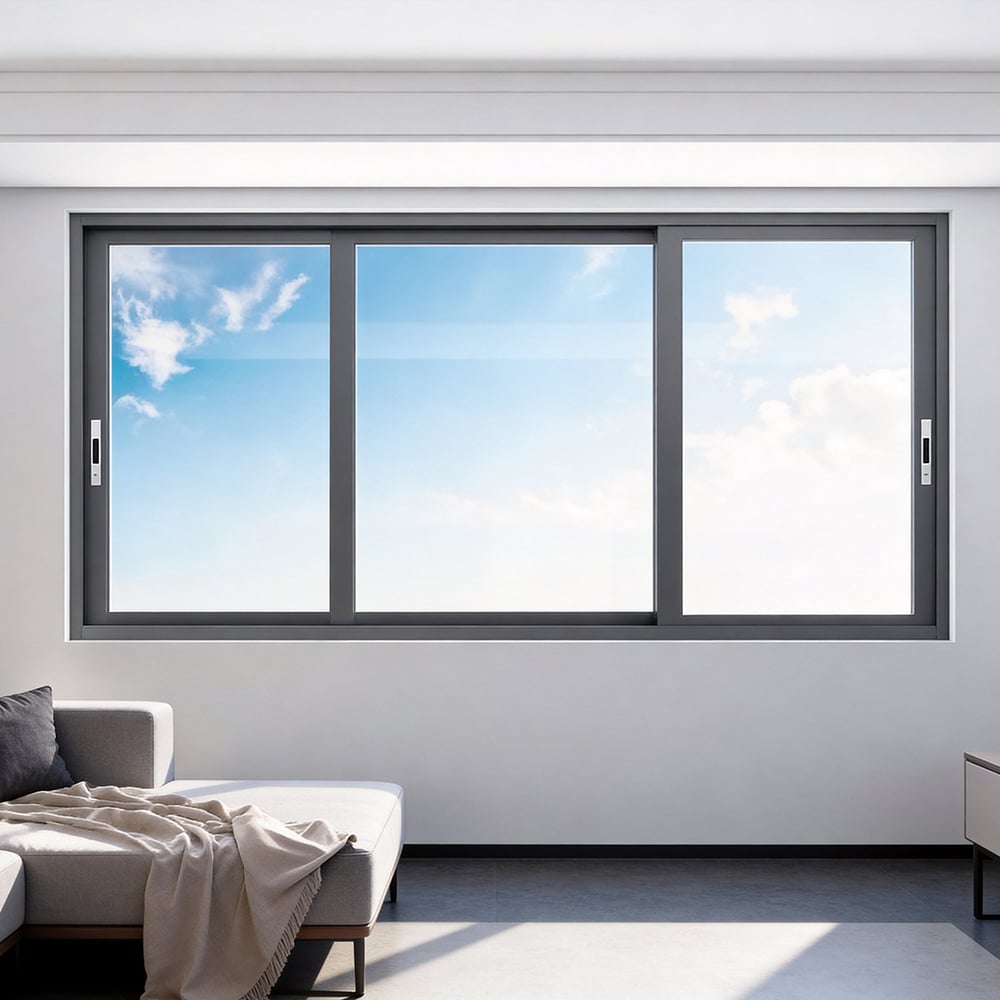

ZCSUNG's Zhichengxuan sliding window system series abandons the mediocrity and wobbling of traditional sliding windows, redefining the performance benchmark of sliding window systems with "large beveled geometric aesthetics" and "high-precision track system" as its core.
Visual Aesthetics: The large beveled edge design gives the window frame a strong sense of three-dimensionality. When light shines through, the alternating lines of light and shadow outline a clean geometric order, showcasing avant-garde architectural beauty.
Safety Enhancement: This pressure line structure not only appears lighter visually, but its physical structure is also more robust, significantly improving the stability of the large-area glass under extreme wind pressure, achieving a perfect coexistence of aesthetics and strength.
The upper rail anti-sway wheel system is Zhichengxuan's core technology. Through the upper rail anti-sway wheel and anti-wobbling/anti-fall-off design, the vertical freedom of the window sash is locked. Even under the strong pressure of a typhoon, the window sash can still be firmly locked in the track, eliminating any vibration or noise, giving you ultimate control and safety.
All models come standard with Nylon 66 reinforced with glass fiber thermal insulation strips, whose coefficient of thermal expansion is exactly the same as that of aluminum alloy, effectively blocking heat transfer between indoors and outdoors, allowing sliding windows to also have excellent K-value performance.
The side windows feature a 5+12Ar+5 configuration, while the solid glass is upgraded to a luxurious 5+20Ar+5 configuration. Both utilize premium Xinyi brand glass, infused with high-purity argon gas, and paired with a black, integrated bent aluminum strip. This not only delivers excellent sound and heat insulation performance, but the all-black aluminum strip visual effect also softens the coldness of the metal, giving the glass edges a profound sense of sophistication.
The Zhichengxuan sliding window system is not just a physical reshaping of a window, but also a profound understanding of the quality of life. We offer you not only a smooth opening and closing experience, but also a brand promise that no matter how fierce the outside world, the interior will remain tranquil and sturdy.
Zhichengxuan makes every facade a work of art that pays tribute to life.
| Wind pressure resistance | 9级P3=5.0KPa GB/T7106-2019 |
| water-tightness, water proofness, water tightness | 3级△P≥250Pa GB/T 7106-2019 |
| gas tightness, airtightness | 6级q1≤1.5m/m·h GB/T7106-2019 |
| Sound insulation | 32db GB/T 8485-2008 |
Specifications
| Frame Thickness/Profile Wall Thickness: | 80mm (two rails) 110mm (three rails)/1.8mm, 6063-T5 high-precision grade |
| Standard hardware： | Zhichengxuan Customized Sliding Hardware System (Automatic Locking) |
| glass craft： | Apply sealant to the glass/fix the glass with a rubber strip. |
| Connection process： | Integrated corner bracket assembly corner glue injection process |
| Glass limit size： | Width 500-1500mm, Height 450-1500mm |
| Window frame/sash visibility width | Can be made into an arched shape; optional clothes rack; optional indoor reinforced handrail. |
