Custom Thermal Break Aluminum Casement Windows Soundproof Double Glazed Low-E Tempered Glass for Luxury Villa Living Room Home
- Overview
- Recommended Products
| Place of Origin: | China |
| Brand Name: | ZCSUNG DOOR&WINDOW SYSTEM |
| Model Number: | 101 SERlES |
Product Description

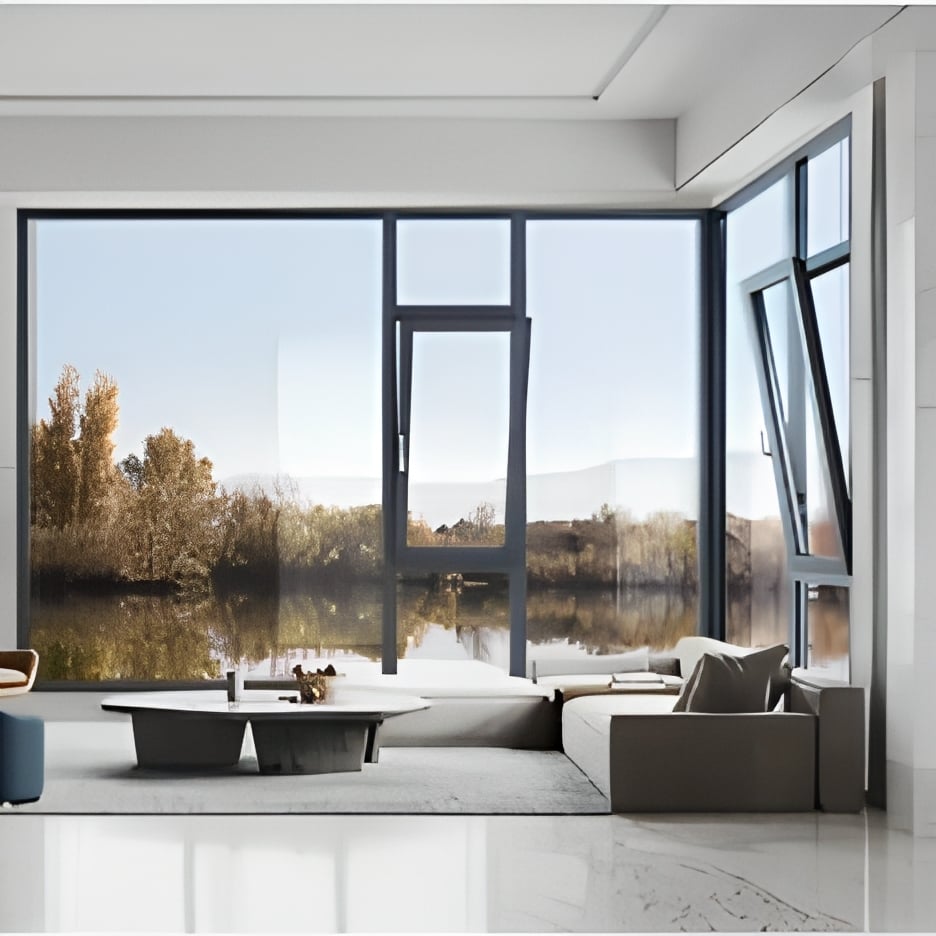

ZCSUNG 101MAX tilt & turn inward window reimagines high-end glazing solutions for residential villas and commercial premises, combining innovative manufacturing tech, fine workmanship and multi-scenario practicality to deliver top-tier performance, elegant silhouette and effortless daily operation. Every structural detail is refined to satisfy high standards for comfort, appearance and ease of use.
The window is pre-fitted with premium 5+20Ar+5 argon-filled insulated tempered glass processed via homogenization treatment. This combination drastically boosts thermal retention and noise isolation while eliminating the risk of spontaneous glass breakage for long-term household safety. VP-grade Xinyi ultra-clear base glass comes as standard, delivering superior light transmittance and unblocked panoramic outdoor views. A unique nano coating on the glass actively decomposes indoor formaldehyde to build a healthier living atmosphere. Integrated curved black aluminum spacers strengthen the whole glass assembly and add a delicate premium texture to the window.
Large chamfered decorative moldings for fixed glass act as a signature visual highlight, presenting layered geometric aesthetics that integrate artistic styling with practical performance. This distinctive detail makes the 101MAX series a standout decorative focal point for all modern architectural styles.
Both inner and outer sides of frame and sash adopt a full flush flat design for a minimalist integrated look that matches all interior and exterior decoration schemes. The sash is processed by seamless welding for a smooth gap-free surface, equipped with soft R7 rounded corners to avoid bump injuries, which is very suitable for families with kids and pets. Custom arched curved profiles are available to enrich architectural layering, and the window can also be installed as safety glass balustrades to broaden applicable scenarios.
Triple-layer sealing structure leads the industry’s weatherproof standard, consisting of anti-aging EPDM gaskets and integrally welded equal-pressure rubber strips. These matched sealing parts form a fully airtight barrier to stop wind, rain and dust from entering the room. EPDM material maintains stable sealing performance after years of outdoor exposure, while integrated equal-pressure rubber strips balance internal and external air pressure to further upgrade water tightness and air tightness.
41mm oversize thermal break strips plus vertical equal-temperature profile design greatly slow heat exchange between indoor and outdoor sides. It stabilizes indoor temperature all year round and cuts the operating load of air conditioning and heating equipment, realizing lower energy consumption and eco-friendly living.
The dual-mode inward tilt & swing sash supports flexible ventilation strategies: fully swing inward for maximum air circulation, or tilt the top slightly for soft trickle ventilation without sacrificing household safety. Magnetic or motorized roller blinds are optional add-ons to freely adjust indoor light intensity and privacy levels according to personal preferences.
The inward-opening screen sash can be detached without any tools, greatly lowering the difficulty of daily cleaning and maintenance. Three mesh alternatives are provided: diamond security mesh, high-definition invisible mesh and high light-transmittance mesh. All screens block mosquitoes and floating dust efficiently and own solid wear resistance to sustain stable performance after long-term frequent use.
To sum up, ZCSUNG 101MAX inward tilt & turn aluminum window perfectly blends luxury aesthetics, all-round practical performance and original functional innovation. With formaldehyde-purifying insulated glass, streamlined flush frame design, abundant custom solutions and humanized operation details, this thermal break casement window integrates health care, household safety and enduring minimalist style. It fully embodies ZCSUNG’s persistent pursuit of technological innovation and high-quality standards in high-end aluminum door and window system manufacturing.
| Wind pressure resistance | 9级P3=5.0KPa GB/T7106-2019 |
| water-tightness, water proofness, water tightness | 6级△P≥500Pa GB/T 7106-2019 |
| gas tightness, airtightness | 8级q1≤1.0m/m·h GB/T7106-2019 |
| Sound insulation | 35-40db GB/T 8485-2008 |
| Insulation | 1.3-1.8W/m²·K GB/T8484-2020 |
| Corrosion resistance>240 hours of salt spray test | |
Specifications
| Frame Thickness/Profile Wall Thickness: | 101/ 1.8 (mm), 6063-T5 high precision grade |
| Connection process: | One-piece angle code group corner glue process |
| Hardware standard | CMECH internal open and inverted hardware system |
| Fan thickness | 72.8MM |
| Baffle limit dimensions： | wide ≤850mm，high≤2700mm |
