110 Pro Thermal Break Aluminum Crankout Casement Windows NFRC Double Glazed Triple Casement Energy Efficient for Residential Home
- Overview
- Recommended Products
| Place of Origin: | China |
| Brand Name: | ZCSUNG DOOR&WINDOW SYSTEM |
| Model Number: | 110 pro SERlES |
Product Description

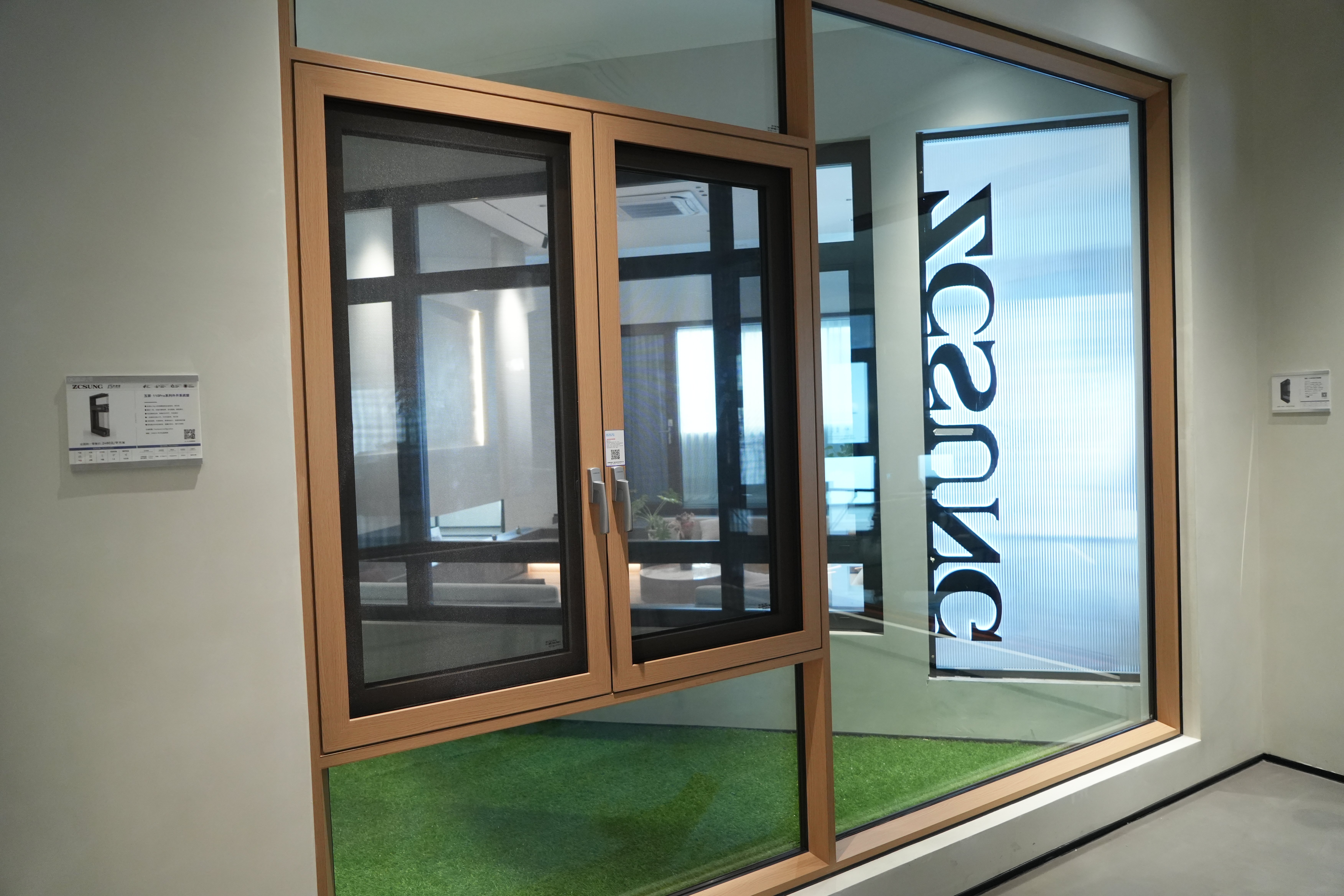

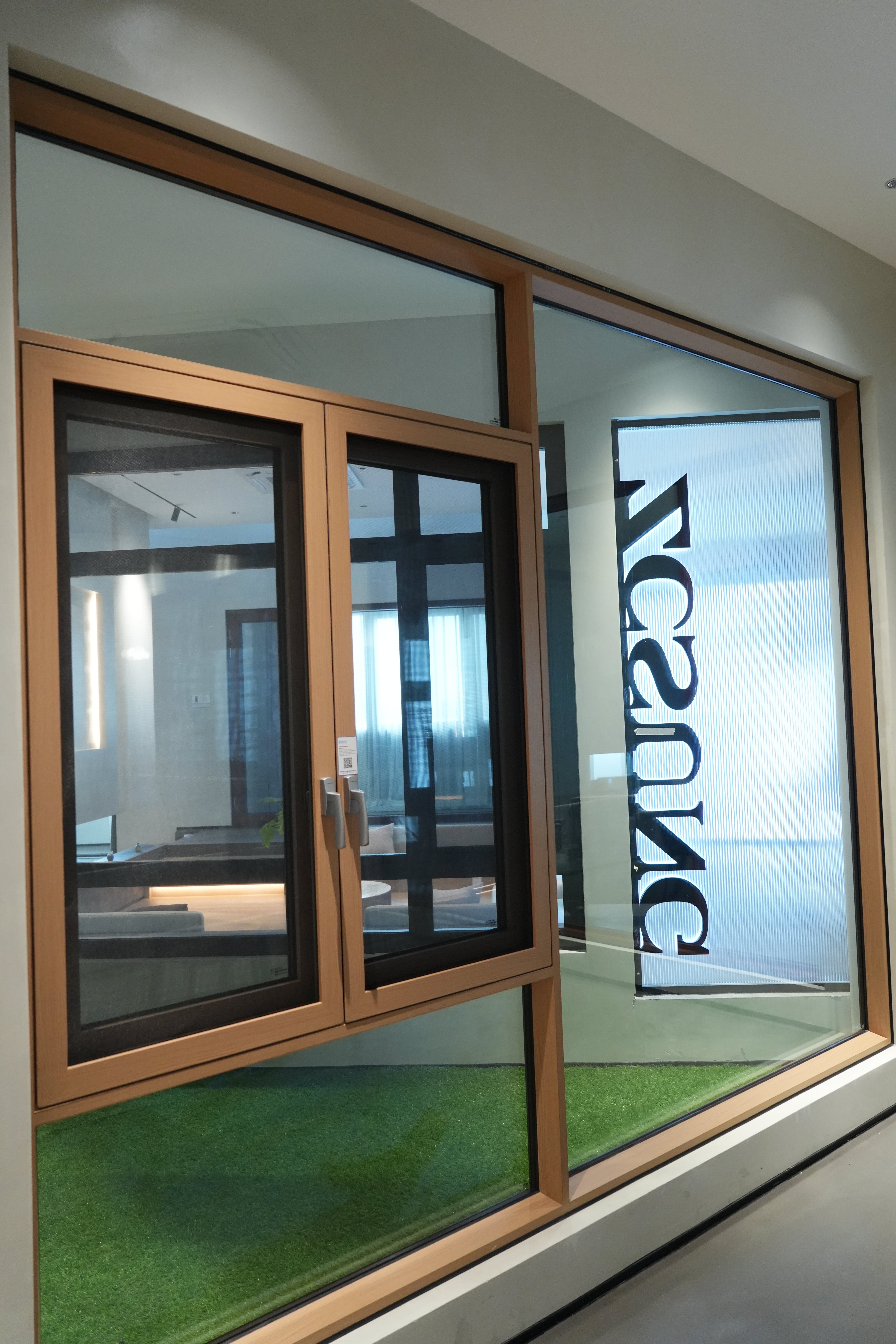

ZCSUNG 110PRO outward opening aluminum window sets a new benchmark for high-performance architectural windows. Constructed from premium high-precision AL-Mg-Si series virgin aluminum alloy, this integrated window-screen unit balances stunning minimalist styling, reinforced safety structure and all-weather functional performance to satisfy strict requirements of modern residential construction.
Premium Raw Material & Exquisite Craftsmanship
The whole window adopts high-grade AL-Mg-Si virgin aluminum profiles. Integrated window and screen design comes as standard, and the screen sash is manufactured with seamless aluminum welding technology for superior structural rigidity. It utilizes one-piece corner connector with glue injection craft to stabilize frame corners. The iconic gem-surface inclined pressing line delivers delicate layered visual effect, paired with flush inner & outer frame and sash to create a neat streamlined look. Humanized R7 rounded corners eliminate collision hazards, bringing both outstanding appearance and household safety.
Upgraded Multi-Layer Sealing & Optimized Thermal Performance
The window adopts internal and external clamping rubber strips with adhesive-free multi-cavity profile structure. Multiple sealing layers work alongside composite foamed gaskets and vertical isothermal line design to effectively block heat exchange between indoors and outdoors, achieving excellent thermal insulation. Built-in concealed drainage channels greatly improve overall water tightness, effectively preventing rain seepage during heavy storms. The matched EPDM sealing strips resist aging, offering long-term stable windproof, waterproof and dustproof performance.
High-Performance Insulated Glass Package
It is equipped with standard 5+20Ar+5 argon-filled homogenized tempered insulated glass. VP-grade Xinyi ultra-clear base glass ensures high light permeability and broad sightlines. The optional nano formaldehyde removal coating continuously purifies indoor air. Integrated curved black aluminum spacers consolidate the glass unit structure while retaining a minimalist modern texture. Closed bead pressing design firmly locks the glass panel, preventing displacement and strengthening overall safety.
Flexible Opening Modes & Customized Safety Solutions
Diverse ventilation configurations are supported: standard outward opening mode, optional top-hung mode, or combined outward opening & top-hung structure to accommodate different ventilation demands. Customers can select magnetic or electric roller shutters to freely adjust lighting and privacy. Movable safety guardrails can be installed at the opening position, which is highly recommended for high-rise buildings and families with children. Three screen mesh selections are available: diamond security mesh, high-definition invisible mesh and high-transmittance mesh, which efficiently block mosquitoes and floating dust with remarkable wear resistance.
To sum up, ZCSUNG 110PRO outward opening casement window organically combines top-tier virgin aluminum materials, refined integrated manufacturing technology, reliable all-weather sealing system and flexible customized functions. Featuring gem-shaped inclined moldings, flush frame design, hidden drainage and energy-saving thermal break construction, this window integrates beauty, safety, health and durability. It fully demonstrates ZCSUNG’s continuous pursuit of technical innovation and premium quality for high-end residential aluminum window systems.
| Wind pressure resistance | 9级P3=5.0KPa GB/T7106-2019 |
| water-tightness, water proofness, water tightness | 5级△P≥500Pa GB/T 7106-2019 |
| gas tightness, airtightness | 8级q1≤1.0m/m·h GB/T7106-2019 |
| Sound insulation | 35-40db GB/T 8485-2008 |
| Insulation | 1.6-2.0W/m²·K GB/T8484-2020 |
| Corrosion resistance>240 hours of salt spray test | |
Specifications
| Frame Thickness/Profile Wall Thickness: | 110/1.8 (mm), 6060-T66 ultra precision grade |
| Connection process: | One-piece angle code group corner glue process |
| Hardware standard | CMECH Venice external hardware system |
| Fan thickness | 63.4mm |
| Baffle limit dimensions： | Wide≤800mm，high≤1600mm |
